535; Komet Radio AG; Mitl (ID = 1858) Radio
Komet Radio AG; Mitl: 535 [Radio] ID = 1858 679x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model 535, Komet Radio AG; Mitlödi

Country:  Switzerland
Manufacturer / Brand:  Komet Radio AG; Mitlödi
Year: 1938–1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6J8G 6K7G 6Q7G 6F6G 6G5 80
Main principle Superheterodyne (common); ZF/IF 125 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 535 - Komet Radio AG; Mitlödi
Material Wooden case
Dimensions (WHD) 490 x 260 x 250 mm / 19.3 x 10.2 x 9.8 inch
Price in first year of sale 325.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Die Tungsram-Tabellen führen das Modell auf.

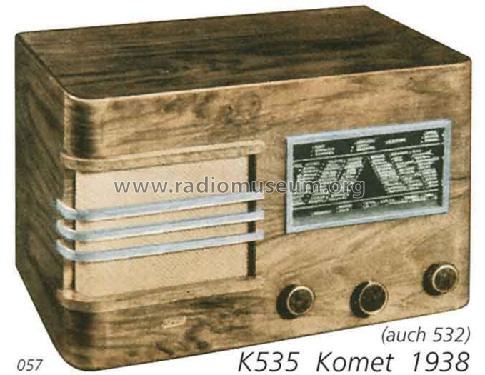

Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
