LTR10; Kontaktbauelemente (ID = 838448) Radio
Kontaktbauelemente: LTR10 [Radio] ID = 838448 490x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model LTR10, Kontaktbauelemente Luckenwalde, VEB; Luckenwalde (Ostd.)

Country:  Germany
Manufacturer / Brand:  Kontaktbauelemente Luckenwalde, VEB; Luckenwalde (Ostd.)
Year: 1984–1986 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 2: SF235 SF235 A283D
Main principle Superheterodyne (common); ZF/IF 10700 kHz
Tuned circuits 5 FM circuit(s)
Wave bands FM Broadcast Band Only
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 cm = 1.8 inch
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: LTR10 - Kontaktbauelemente Luckenwalde
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 74 x 140 x 32 mm / 2.9 x 5.5 x 1.3 inch
Notes

Entwickelt im VEB Elektronik Gera.

Net weight (2.2 lb = 1 kg) 0.3 kg / 0 lb 10.6 oz (0.661 lb)
Price in first year of sale 150.00 DM
Source of data Radiokatalog Band 2, Ernst Erb

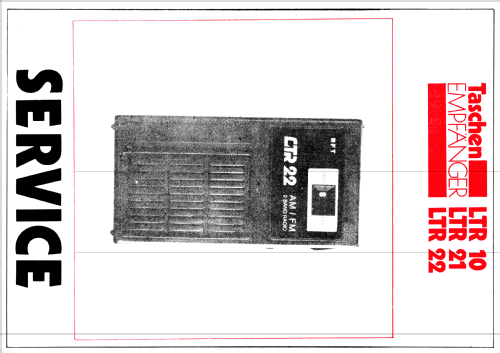

Literature/Schematics (1) Service-DVD Funkverlag Hein

Model page created by Wolfgang Lill. See "Data change" for further contributors.



All listed radios etc. from Kontaktbauelemente Luckenwalde, VEB; Luckenwalde (Ostd.)
Here you find 5 models, 4 with images and 4 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
