49A

49A; Korona Radio; (ID = 1466593) Radio
49A; Korona Radio; (ID = 543399) Radio 49A; Korona Radio; (ID = 1542839) Radio
49A; Korona Radio; (ID = 1542841) Radio 49A; Korona Radio; (ID = 1542842) Radio
49A; Korona Radio; (ID = 1542844) Radio
Use red slider bar for more.

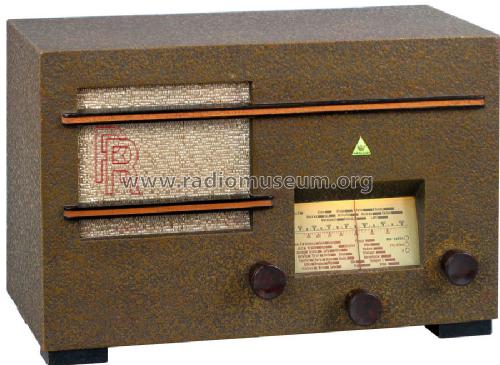

49A; Korona Radio; (ID = 543399) Radio
Korona Radio;: 49A [Radio] ID = 543399 900x658
Select picture or schematic to display from thumbnails on the right and click for download.
For model 49A, Korona Radio; Warszawa

Country:  Poland
Manufacturer / Brand:  Korona Radio; Warszawa
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: S424 P434 G429
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13.5 cm = 5.3 inch
Power out
from Radiomuseum.org Model: 49A - Korona Radio; Warszawa
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 405 x 265 x 170 mm / 15.9 x 10.4 x 6.7 inch
Notes Lackiertes Gehäuse.
Mentioned in Zlote Lata Radia, Polen

Model page created by Henryk Berezowski. See "Data change" for further contributors.
