• Country
• Germany

• Manufacturer / Brand
• Körting-Radio; Leipzig, später Grassau

• Year
• 1960–1962 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 90218

• • alternative name: Dietz & Ritter GmbH, Dr.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECC85 EL95 EL95 EAM86 EL95

• Number of Transistors
• 2

• Semiconductors
• OC44 OC44

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 150; 220; 240; 250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3.5 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org

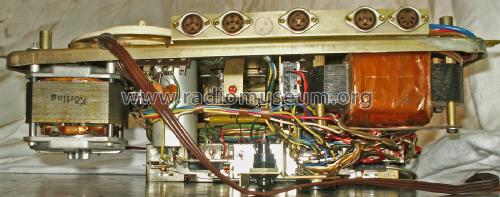

• Model: Magnettongerät MT118 - Körting-Radio; Leipzig, später

• Dimensions (WHD)
• 420 x 330 x 215 mm / 16.5 x 13 x 8.5 inch

• Notes
• Duroplastkoffer mit Schaumlederbespannung; Viertelspur-Stereo; 19/9,5 cm/s; 30-20000/40-15000 Hz; Dreikopfgerät; Hinterbandkontrolle; Multiüberspielfunktion; Spulen-Ø 18 cm; zwei eingebaute Endstufen mit getrennter Regelung.

• Net weight (2.2 lb = 1 kg)
• 13 kg / 28 lb 10.1 oz (28.634 lb)

• Price in first year of sale
• 598.00 DM

• Source of data
• -- Original-techn. papers.
