Sonector 2000 32580 821/896

Sonector 2000 32580 821/896; Körting-Radio; (ID = 1760185) Radio

Sonector 2000 32580 821/896; Körting-Radio; (ID = 1760187) Radio

Sonector 2000 32580 821/896; Körting-Radio; (ID = 1760188) Radio

Sonector 2000 32580 821/896; Körting-Radio; (ID = 1760190) Radio

Sonector 2000 32580 821/896; Körting-Radio; (ID = 1760207) Radio

Sonector 2000 32580 821/896; Körting-Radio; (ID = 1760209) Radio

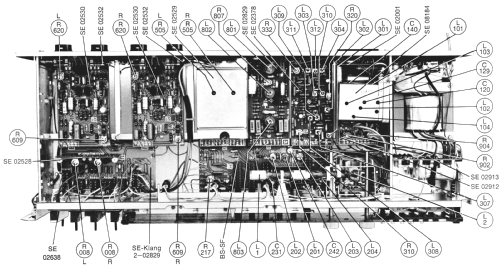

Sonector 2000 32580 821/896; Körting-Radio; (ID = 1760210) Radio

Sonector 2000 32580 821/896; Körting-Radio; (ID = 1760179) Radio

Sonector 2000 32580 821/896; Körting-Radio; (ID = 1760181) Radio

Sonector 2000 32580 821/896; Körting-Radio; (ID = 1760183) Radio
Sonector 2000 32580 821/896; Körting-Radio; (ID = 1598281) Radio Sonector 2000 32580 821/896; Körting-Radio; (ID = 1598284) Radio
Sonector 2000 32580 821/896; Körting-Radio; (ID = 1598611) Radio
Use red slider bar for more.
Sonector 2000 32580 821/896; Körting-Radio; (ID = 1598281) Radio
Körting-Radio;: Sonector 2000 32580 821/896 [Radio] ID = 1598281 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sonector 2000 32580 821/896, Körting-Radio; Leipzig, später Grassau

Country:  Germany
Manufacturer / Brand:  Körting-Radio; Leipzig, später Grassau
alternative name

Dietz & Ritter GmbH, Dr.
Year: 1971–1973 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 47:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     16 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 60 W (100 W max.)
from Radiomuseum.org Model: Sonector 2000 32580 821/896 - Körting-Radio; Leipzig, später
Material Modern plastics (no Bakelite or Catalin)
Shape Book-shelf unit.
Dimensions (WHD) 635 x 140 x 270 mm / 25 x 5.5 x 10.6 inch
Notes

Gleiches Gerät wurde von Neckermann mit der Art.Nr. 821/896 angeboten.

Net weight (2.2 lb = 1 kg) 8.6 kg / 18 lb 15.1 oz (18.943 lb)
Price in first year of sale 999.00 DM

Model page created by Donat Frey. See "Data change" for further contributors.
