Unix 38 R2104GW
Körting-Radio; Leipzig, später Grassau
- Country
- Germany
- Manufacturer / Brand
- Körting-Radio; Leipzig, später Grassau
- Year
- 1937/1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 2448
-
- alternative name: Dietz & Ritter GmbH, Dr.
Wilhelm Reuter Katalog Seite 4

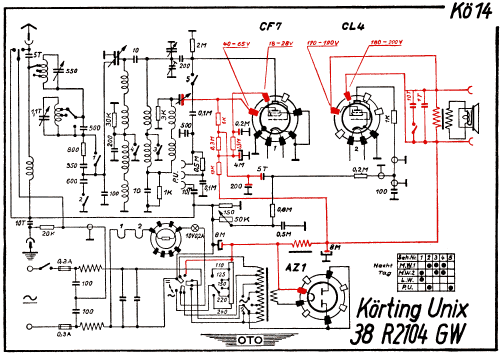

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Main principle
- TRF with regeneration; 1 AF stage(s)
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- AC/DC-set / 110; 125; 150; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Unix 38 R2104GW - Körting-Radio; Leipzig, später
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 520 x 300 x 250 mm / 20.5 x 11.8 x 9.8 inch
- Notes
- Tag-Nacht-Schalter
- Net weight (2.2 lb = 1 kg)
- 12.7 kg / 27 lb 15.6 oz (27.974 lb)
- Price in first year of sale
- 167.00 RM
- Source of data
- Handbuch WDRG 1937 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange+Schenk+FS-Röhrenbestückung
- Literature/Schematics (1)
- -- Schematic (OTO-Schaltungen)
- Picture reference
- Das Modell ist im «Radiokatalog» (Erb) abgebildet.
