Videovox 45547

Videovox 45547; Körting Austria (ID = 457289) Television

Videovox 45547; Körting Austria (ID = 457290) Television

Videovox 45547; Körting Austria (ID = 457291) Television
Videovox 45547; Körting Austria (ID = 457287) Television Videovox 45547; Körting Austria (ID = 457288) Television
Use red slider bar for more.
Videovox 45547; Körting Austria (ID = 457287) Television
Körting Austria: Videovox 45547 [Television] ID = 457287 933x688

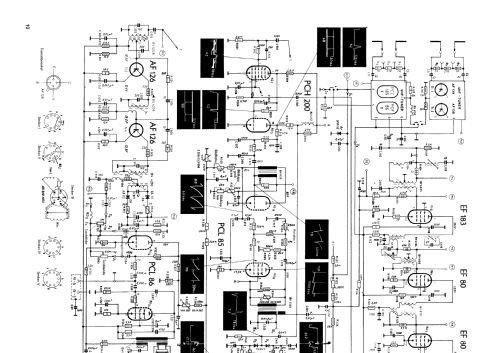

Select picture or schematic to display from thumbnails on the right and click for download.
For model Videovox 45547, Körting Austria

Country:  Austria
Manufacturer / Brand:  Körting Austria
Year: 1964 Category: Television Receiver (TV) or Monitor
Valves / Tubes 14: PCC189 PCF86 EF183 EF80 EF80 PCL84 PCL86 PCH200 PCL85 ECH84 PL500 PY88 DY86 23DHP4
Semiconductors (the count is only for transistors) 4:
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Videovox 45547 - Körting Austria
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes Empfangsbereich VHF/UHF.

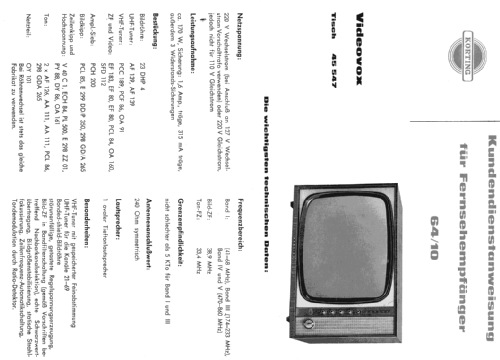

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.



All listed radios etc. from Körting Austria
Here you find 19 models, 13 with images and 5 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
