• Country
• Poland

• Manufacturer / Brand
• Kosmos Radio SA; Warszawa

• Year
• 1941 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 143538

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• UCH4 UBL1 UY1N

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Bakelite case

• from Radiomuseum.org

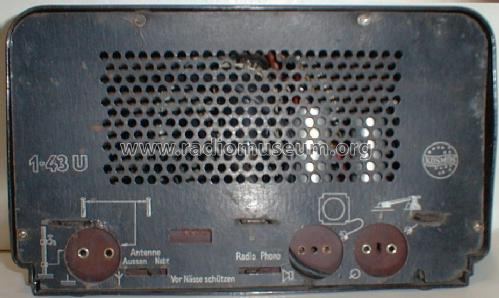

• Model: 1-43U [W] - Kosmos Radio SA; Warszawa

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 345 x 205 x 150 mm / 13.6 x 8.1 x 5.9 inch

• Notes
• Weichsel, Krakau (Haupstad GG), Warschau

• Source of data
• - - Data from my own collection

• Author
• Model page created by Henryk Berezowski. See "Data change" for further contributors.
