• Year
  • 1951/1952
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 15563

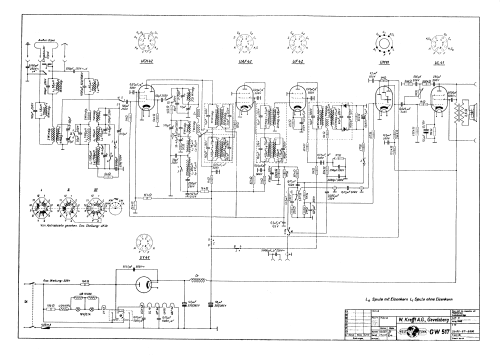

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 473/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • AC/DC-set / 110; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Weltfunk GW517 [Phono] - Krefft AG, W.; Gevelsberg
  • Shape
  • Tablemodel, low profile (big size).
  • External source of data
  • E. Erb 3-907007-36-0
