Stereosonic Six 11-114

Kriesler Radio Company; Newtown (Sydney)

Data
Forum
Pictures
Collections

  • Year
  • 1968
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 262532

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 200-230; 230-260 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 8 inch = 20.3 cm
  • Power out
  • 3 W (undistorted)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Stereosonic Six 11-114 - Kriesler Radio Company;
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Dimensions (WHD)
  • 43.625 x 20.375 x 17.25 inch / 1108 x 518 x 438 mm
  • Notes

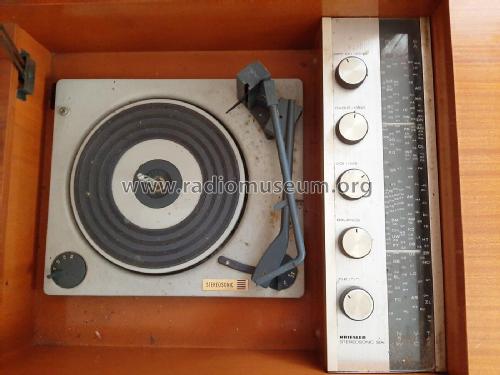

  • This stereo radiogram uses a BSR UA25 record changer.  The speakers are type 8S1X.  The power output is per channel.

    Cabinet finishes available in Maple, Walnut, Rose Mahogany & Teak.

  • Net weight (2.2 lb = 1 kg)
  • 85 lb (85 lb 0 oz) / 38.590 kg
  • Price in first year of sale
  • 200.00 AUS $
  • Mentioned in
  • - - Manufacturers Literature (Kriesler Technical Advisory Service Sheet No. 114.)
  • Author
  • Model page created by Stuart Irwin. See "Data change" for further contributors.
