- Country
- Australia
- Manufacturer / Brand
- Kriesler Radio Company; Newtown (Sydney)
- Year
- 1951
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 230334
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s); Reflex
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: 11-20 Q - Kriesler Radio Company;
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 308 x 225 x 222 mm / 12.1 x 8.9 x 8.7 inch
- Notes
-

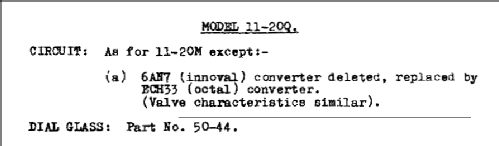

The 11-20 had 27 variants, differing in valve line up, speaker type, circuit variations etc.
- Circuit diagram reference
- Australian Official Radio Service Manual Vol. IX
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
