For model Playway 41-24 Ch= 89-2, Kriesler Radio Company; Newtown (Sydney):
Radio as given to me - working.

Country:  Australia
Manufacturer / Brand:  Kriesler Radio Company; Newtown (Sydney)
Year: 1961/1962 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: OC170 OC169 OC169 OC75 OC74 OC74 OA79 OA80
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.75 inch = 7 cm
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: Playway 41-24 Ch= 89-2 - Kriesler Radio Company;
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 5 x 3.5 x 1.75 inch / 127 x 89 x 44 mm
Notes

Kriesler Model 41-24 "Playway"

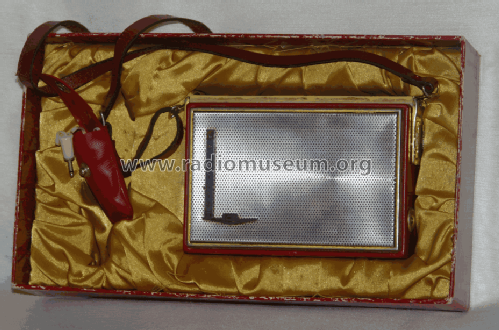

BC personal portable having six transistors and two germanium diodes. Housed in plastic, leatherette covered cabinet with detachable carrying strap. Finish: gold-plated, set with diamente jewels; pigskin, tan or red, in gift box.

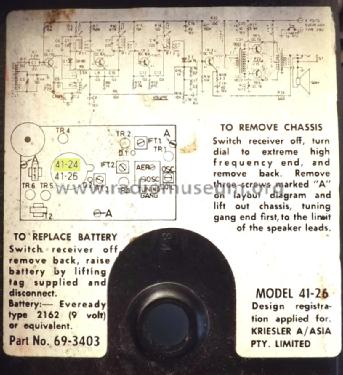

Features: Ferrite rod aerial. Socket for earpiece or extension speaker. Operates from one Eveready Type 2162 (9V) battery. Interchangable dial scales for States.

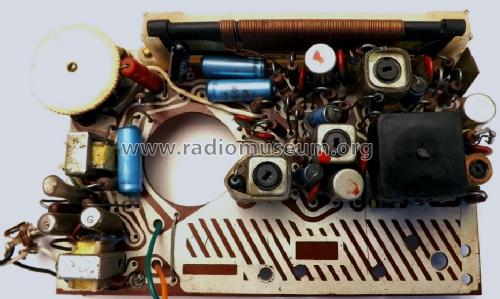

Both the 41-24 and the 41-26 (Playboy) use the 89-2 chassis. The 41-24 has a “Leatherette” covered plastic case whereas the 41-26 is vinyl covered.  They came with an earphone and a carry strap but no carry case. Price is with battery.

Net weight (2.2 lb = 1 kg) 1 lb 0 oz (1 lb) / 0.454 kg
Price in first year of sale 27.30 AUS £
Mentioned in Antique Radio Magazine - Italy, Club Antique Radio Magazine (n. 128, novembre-dicembre 2015)
Literature/Schematics (1) - - Manufacturers Literature (Kriesler Technical Service Instructions, 3/5/1961.)
Literature/Schematics (2) J.R. Publications Transistor Radio Service Handbook (Supplement to Vol. 1, 1960, Page K5. (Also at KevinChant.com))
Literature/Schematics (3) Mingay's Radio Electrical Weekly Price Service (REWPS) (Feb 1962 to Feb 1963.)
Documents regarding this model
  KRIESLER MOD. 41-24. La radio con la Croce del Sud (Gentile concessione L.Salvatore/ARM) 2938 KB

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
