Hi-Fi Console Grand 121-13 Ch= 79-2
Kriesler Radio Company; Newtown (Sydney)
- Country
- Australia
- Manufacturer / Brand
- Kriesler Radio Company; Newtown (Sydney)
- Year
- 1959/1960
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 277297
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 18
- Valves / Tubes
- 6ES8 6BL8 6BL8 6BX6 6BM8 6BY7 6BX6 6BX6 6CK6 6BL8 6BM8 6CS6 6BL8 6N3 6N3 6CM5 6R3 1S2 AW53-80
- Number of Transistors
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 205-250 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Hi-Fi Console Grand 121-13 Ch= 79-2 - Kriesler Radio Company;
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 29.5 x 33.75 x 15.625 inch / 749 x 857 x 397 mm
- Notes
-

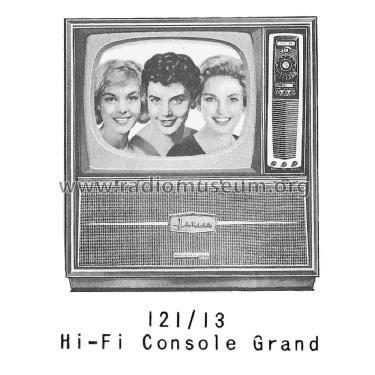

Kriesler 21" Hi-Fi Console Grand - 121-13
As a fine furnishing piece and a superlative entertainment unit, "Magi-Matic" Hi-Fi Console Grand is the logical choice for those who demand the best.
The 5-cone genuine high-fidelity speaker system, presenting a panorama of sound, is synchronised with the out-front Hi-Fi picture to give dramatic "living presence" - the programme really "comes to life".
Gleaming hand-rubbed piano polish and 24-carat gold trim add distinction to the classic styling of the cabinet... which swivels at a touch to any viewing angle or rolls easily to any room. (MINGAY'S PRICE SERVICE)
Cabinet finishes in walnut, maple or rose-mahogany.
- Net weight (2.2 lb = 1 kg)
- 152 lb 0 oz (152 lb) / 69.008 kg
- Price in first year of sale
- 248.85 AUS £
- Mentioned in
- Mingay's Price Service (Aug 1959 & Feb 1960.)
- Literature/Schematics (1)
- -- Original-techn. papers. (Kriesler Television Model Handbook Series A, 79-2 Chassis.)
- Literature/Schematics (2)
- -- Original-techn. papers. (Kriesler Television Service Handbook Series B, 79-2 Chassis.)
- Literature/Schematics (3)
- J.R. Publications Television Service Handbook (Television Service Manual 2nd edition 1961, L.J. Series 1962 & 1967, Page K6.)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
