Knirps TS60

Knirps TS60; Kristallwerk Graz (ID = 37640) Radio
Knirps TS60; Kristallwerk Graz (ID = 467301) Radio Knirps TS60; Kristallwerk Graz (ID = 467300) Radio
Knirps TS60; Kristallwerk Graz (ID = 2327357) Radio Knirps TS60; Kristallwerk Graz (ID = 184400) Radio
Knirps TS60; Kristallwerk Graz (ID = 37637) Radio Knirps TS60; Kristallwerk Graz (ID = 184398) Radio
Knirps TS60; Kristallwerk Graz (ID = 184401) Radio Knirps TS60; Kristallwerk Graz (ID = 184397) Radio
Knirps TS60; Kristallwerk Graz (ID = 467299) Radio Knirps TS60; Kristallwerk Graz (ID = 467302) Radio
Use red slider bar for more.
Knirps TS60; Kristallwerk Graz (ID = 467301) Radio

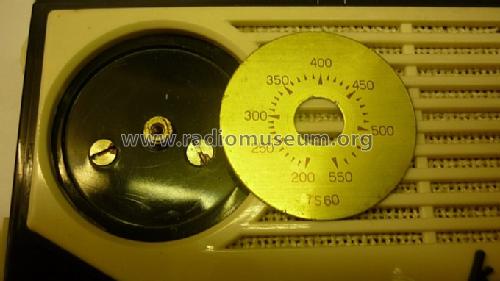

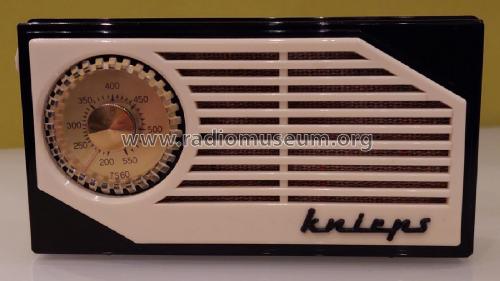

Kristallwerk Graz: Knirps TS60 [Radio] ID = 467301 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Knirps TS60, Kristallwerk Graz (auch Rainer)

Country:  Austria
Manufacturer / Brand:  Kristallwerk Graz (auch Rainer)
Year: 1959/1960 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: OC44 OC45 OC45 OC71 OC72 OC72 OA79 OA70
Main principle Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: Knirps TS60 - Kristallwerk Graz auch Rainer
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 145 x 78 x 40 mm / 5.7 x 3.1 x 1.6 inch
Notes Transistor-Bestückung auch: 3x 2N412, 3x 2N408; statt OC71 auch OC75.
ZF auch: 452 kHz.
, Ferritantenne 13 cm
Net weight (2.2 lb = 1 kg) 0.340 kg / 0 lb 12 oz (0.749 lb)
Source of data -- Collector info (Sammler) / Radiokatalog Band 2, Ernst Erb
Mentioned in Museums Bote, Österr. (Heft 111/2002, S.9 ff, Gerätebeschreibung)


All listed radios etc. from Kristallwerk Graz (auch Rainer)
Here you find 19 models, 15 with images and 6 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
