Amplifier D 8066

Krundaal Davoli; Parma

  • Year
  • 1967 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 326148

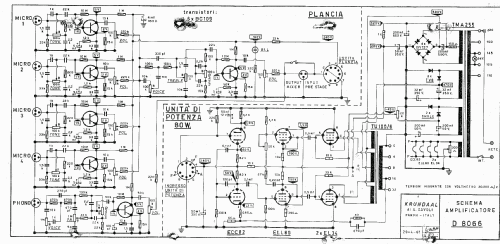

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Number of Transistors
  • 6
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110-220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 80 W (undistorted)
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Amplifier D 8066 - Krundaal Davoli; Parma
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 540 x 270 x 200 mm / 21.3 x 10.6 x 7.9 inch
  • Literature/Schematics (1)
  • -- Schematic
  • Author
  • Model page created by Fabrizio Palombi. See "Data change" for further contributors.
