• Country
• Italy

• Manufacturer / Brand
• Krundaal Davoli; Parma

• Year
• 1955 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 305617

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• SFT320 SFT107 SFT153 SFT123 SFT123 SFD106

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

• Power out
• 0.2 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org

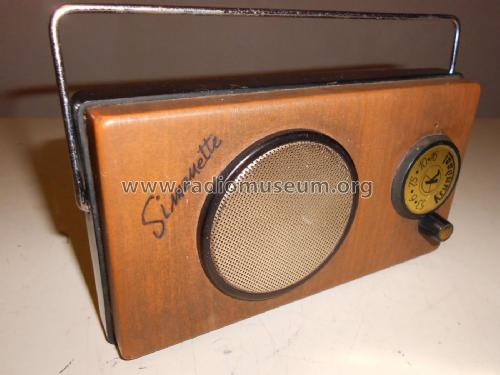

• Model: Simonette - Krundaal Davoli; Parma

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 178 x 95 x 42 mm / 7 x 3.7 x 1.7 inch

• Notes

• controllo volume - maniglia di trasporto - antenna interna in ferrite - gamma di frequenza: 520 - 1605 Kc - impedenza altoparlante 8 Ω.

• Net weight (2.2 lb = 1 kg)
• 0.650 kg / 1 lb 6.9 oz (1.432 lb)

• Author
• Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
