Adria 59 Ch= 508

Adria 59 Ch= 508; Kuba Kuba-Imperial, (ID = 1028570) TV Radio

Adria 59 Ch= 508; Kuba Kuba-Imperial, (ID = 1028571) TV Radio
Adria 59 Ch= 508; Kuba Kuba-Imperial, (ID = 1037051) TV Radio Adria 59 Ch= 508; Kuba Kuba-Imperial, (ID = 316520) TV Radio
Use red slider bar for more.
Adria 59 Ch= 508; Kuba Kuba-Imperial, (ID = 1037051) TV Radio
Kuba Kuba-Imperial,: Adria 59 Ch= 508 [TV Radio] ID = 1037051 900x755

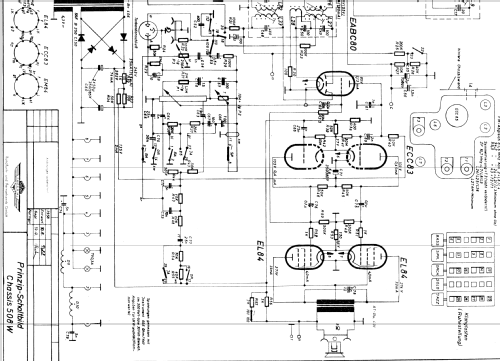

Select picture or schematic to display from thumbnails on the right and click for download.
For model Adria 59 Ch= 508, Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel:
Bild aus Kuba-Prospekt Saison 1958-1959

Country:  Germany
Manufacturer / Brand:  Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel
alternative name

Imperial Kuba
Year: 1958/1959 Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details Changer (Record changer); Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 5 Loudspeakers
Power out 14 W (unknown quality)
from Radiomuseum.org Model: Adria 59 Ch= 508 - Kuba Kuba-Imperial, G.
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 1220 x 970 x 575 mm / 48 x 38.2 x 22.6 inch
Notes Fernseh-Chassis = Imperial 921;
Rundfunk-Chassis = Imperial 508;
Phono-Chassis = Telefunken TW562.
Price in first year of sale 1'998.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1958/59

Model page created by Bernd P. Kieck. See "Data change" for further contributors.



All listed radios etc. from Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel
Here you find 726 models, 673 with images and 270 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
