Akropolis Ch= 864

Akropolis Ch= 864; Kuba Kuba-Imperial, (ID = 2505923) TV Radio

Akropolis Ch= 864; Kuba Kuba-Imperial, (ID = 2505924) TV Radio

Akropolis Ch= 864; Kuba Kuba-Imperial, (ID = 2505925) TV Radio

Akropolis Ch= 864; Kuba Kuba-Imperial, (ID = 2505926) TV Radio

Akropolis Ch= 864; Kuba Kuba-Imperial, (ID = 2505927) TV Radio

Akropolis Ch= 864; Kuba Kuba-Imperial, (ID = 2505928) TV Radio

Akropolis Ch= 864; Kuba Kuba-Imperial, (ID = 2505929) TV Radio

Akropolis Ch= 864; Kuba Kuba-Imperial, (ID = 2505930) TV Radio

Akropolis Ch= 864; Kuba Kuba-Imperial, (ID = 2505931) TV Radio

Akropolis Ch= 864; Kuba Kuba-Imperial, (ID = 2517458) TV Radio
Akropolis Ch= 864; Kuba Kuba-Imperial, (ID = 1325875) TV Radio Akropolis Ch= 864; Kuba Kuba-Imperial, (ID = 291104) TV Radio
Use red slider bar for more.
Akropolis Ch= 864; Kuba Kuba-Imperial, (ID = 1325875) TV Radio
Kuba Kuba-Imperial,: Akropolis Ch= 864 [TV Radio] ID = 1325875 900x605

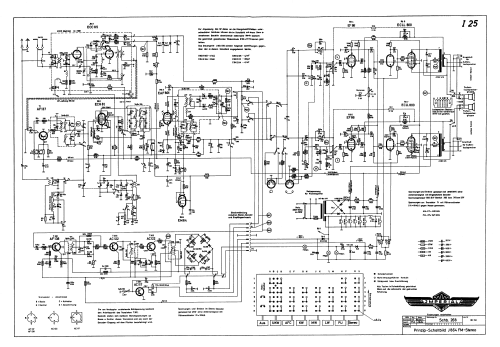

Select picture or schematic to display from thumbnails on the right and click for download.
For model Akropolis Ch= 864, Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel:
Foto aus Kuba-Katalog Saison 1964-1965

Country:  Germany
Manufacturer / Brand:  Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel
alternative name

Imperial Kuba
Year: 1965/1966 Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Akropolis Ch= 864 - Kuba Kuba-Imperial, G.
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1660 x 1020 x 610 mm / 65.4 x 40.2 x 24 inch
Notes Fernseh-Chassis = 1823;
Rundfunk-Chassis = 864;
Phono-Chassis = Dual 1011.
Net weight (2.2 lb = 1 kg) 120 kg / 264 lb 5.1 oz (264.317 lb)
Source of data Handbuch VDRG 1965/1966

Model page created by Bernd P. Kieck. See "Data change" for further contributors.



All listed radios etc. from Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel
Here you find 726 models, 673 with images and 270 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
