Burma Ch=611 poliert

Burma Ch=611; Kuba Kuba-Imperial, (ID = 743775) Radio
Use red slider bar for more.
Burma Ch=611; Kuba Kuba-Imperial, (ID = 743775) Radio
Kuba Kuba-Imperial,: Burma Ch=611 [Radio] ID = 743775 748x900
Select picture or schematic to display from thumbnails on the right and click for download.
For model Burma Ch=611 poliert, Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel:

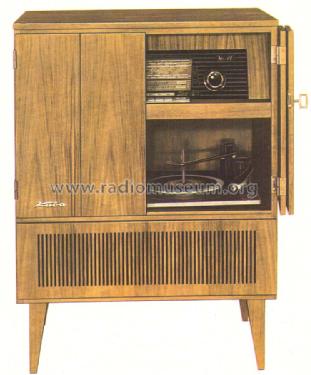

Foto aus Kuba Prospekt Saison 1963-1964

Country:  Germany
Manufacturer / Brand:  Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel
alternative name

Imperial Kuba
Year: 1963/1964 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF85 EAA91 EM84 ECL86 ECL86
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 235; 250 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Burma Ch=611 [poliert] - Kuba Kuba-Imperial, G.
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 660 x 910 x 410 mm / 26 x 35.8 x 16.1 inch
Notes Rundfunk-Chassis = 611;
Phono-Chassis: verschiedene Fabrikate.
External source of data Erb
Source of data Handbuch VDRG 1963/1964 / Radiokatalog Band 2, Ernst Erb
