• Country
• Germany

• Manufacturer / Brand
• Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel

• Year
• 1965/1966

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 110967

• • alternative name: Imperial Kuba

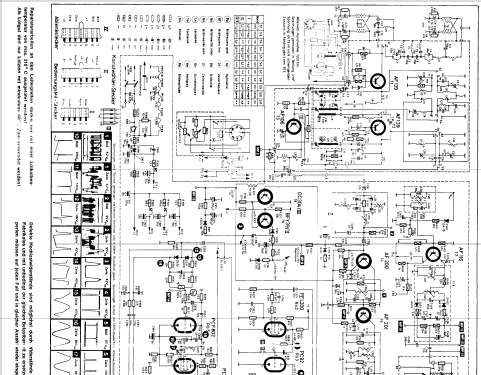

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• A59-11W

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Montreal Ch= 1823 [59 cm] - Kuba Kuba-Imperial, G.

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 730 x 900 x 400 mm / 28.7 x 35.4 x 15.7 inch

• Notes
• VHF/UHF. Technische Daten wie Rio, jedoch Standgerät mit Jalousie und verchromtem, drehbarem Kreuzfuß.

• Net weight (2.2 lb = 1 kg)
• 43 kg / 94 lb 11.4 oz (94.714 lb)

• Source of data
• Handbuch VDRG 1965/1966

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
