Rimini E21

Rimini E21; Kuba Kuba-Imperial, (ID = 327961) Radio

Rimini E21; Kuba Kuba-Imperial, (ID = 327962) Radio

Rimini E21; Kuba Kuba-Imperial, (ID = 2079324) Radio

Rimini E21; Kuba Kuba-Imperial, (ID = 2079325) Radio

Rimini E21; Kuba Kuba-Imperial, (ID = 2079326) Radio

Rimini E21; Kuba Kuba-Imperial, (ID = 2079327) Radio
Rimini E21; Kuba Kuba-Imperial, (ID = 747408) Radio Rimini E21; Kuba Kuba-Imperial, (ID = 71145) Radio
Rimini E21; Kuba Kuba-Imperial, (ID = 953138) Radio Rimini E21; Kuba Kuba-Imperial, (ID = 953139) Radio
Rimini E21; Kuba Kuba-Imperial, (ID = 953140) Radio Rimini E21; Kuba Kuba-Imperial, (ID = 2079301) Radio
Use red slider bar for more.
Rimini E21; Kuba Kuba-Imperial, (ID = 747408) Radio
Kuba Kuba-Imperial,: Rimini E21 [Radio] ID = 747408 900x520
Select picture or schematic to display from thumbnails on the right and click for download.
For model Rimini E21, Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel:

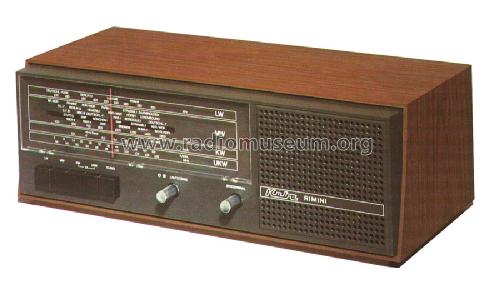

Foto aus Kuba-Prospekt Saison 1971-1972

Country:  Germany
Manufacturer / Brand:  Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel
alternative name

Imperial Kuba
Year: 1968–1972 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11: 2N3417 BF235 BF234 2N3662 BF240 BF240 BF241 2N3391 2N3391 AC187 AC188
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 2.6 W (unknown quality)
from Radiomuseum.org Model: Rimini E21 - Kuba Kuba-Imperial, G.
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 385 x 130 x 160 mm / 15.2 x 5.1 x 6.3 inch

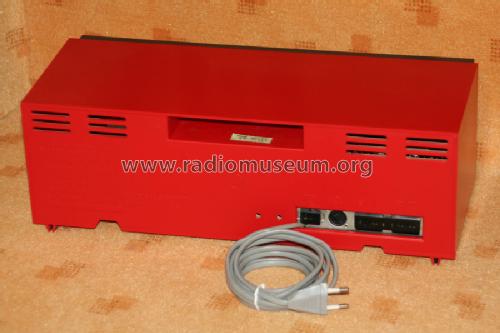

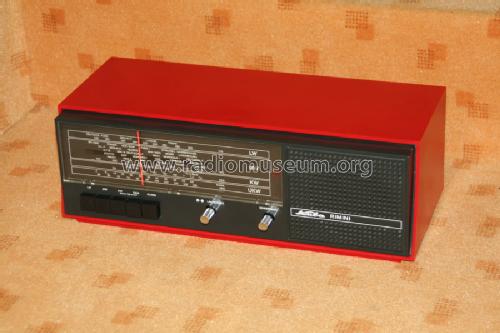

Notes Gehäuseausführungen: Monzarot, Perlweiß, Nußbaum Dekor hell. Anschlüsse für TA/TB und Aussenlautsprecher. Produktionsende mit der Insolvenz 1972.
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
External source of data erb
Source of data Handbuch VDRG 1968/1969 / Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.
