Transistor 64

Transistor 64; Kuba Kuba-Imperial, (ID = 277750) Radio Transistor 64; Kuba Kuba-Imperial, (ID = 1274935) Radio
Transistor 64; Kuba Kuba-Imperial, (ID = 1274936) Radio Transistor 64; Kuba Kuba-Imperial, (ID = 1798072) Radio
Transistor 64; Kuba Kuba-Imperial, (ID = 1798074) Radio
Use red slider bar for more.

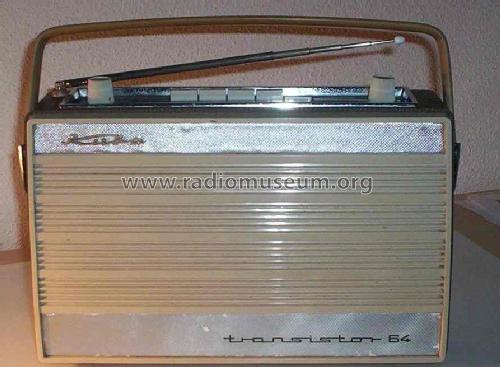

Transistor 64; Kuba Kuba-Imperial, (ID = 277750) Radio
Kuba Kuba-Imperial,: Transistor 64 [Radio] ID = 277750 893x657
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transistor 64, Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel
Country:  Germany
Manufacturer / Brand:  Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel
alternative name
Imperial Kuba
Year: 1963/1964 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: AF124 AF125 AF126 AF126 AF126 AC151 AC151 AC153 AC153 OC303
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Power type and voltage Dry Batteries / 5 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1.8 W (unknown quality)
from Model: Transistor 64 - Kuba Kuba-Imperial, G.
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 290 x 190 x 95 mm / 11.4 x 7.5 x 3.7 inch
Notes Das technisch gleiche Gerät gibt es auch bei Imperial.
Net weight (2.2 lb = 1 kg) 2.9 kg / 6 lb 6.2 oz (6.388 lb)
Price in first year of sale 298.00 DM
External source of data E. Erb 3-907007-36-0
Source of data Handbuch VDRG 1963/1964 / Radiokatalog Band 2, Ernst Erb
