Nagra II-c

Nagra II-c ; Kudelski SA; (ID = 163794) R-Player Nagra II-c ; Kudelski SA; (ID = 163795) R-Player

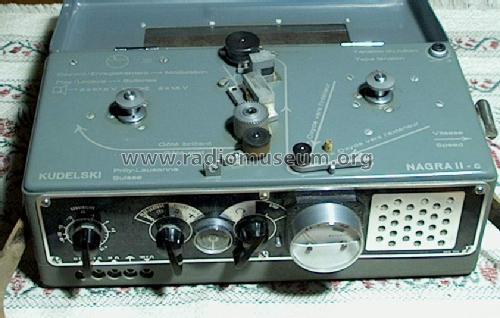

Nagra II-c ; Kudelski SA; (ID = 163796) R-Player
Use red slider bar for more.
Nagra II-c ; Kudelski SA; (ID = 163794) R-Player
Kudelski SA;: Nagra II-c [R-Player] ID = 163794 933x539
Select picture or schematic to display from thumbnails on the right and click for download.
For model Nagra II-c, Kudelski SA; Cheseaux-sur-Lausanne

Country:  Switzerland
Manufacturer / Brand:  Kudelski SA; Cheseaux-sur-Lausanne
Brand

Nagra
Year: 1955 Category: Sound/Video Recorder and/or Player
Valves / Tubes 7: DAF96 DAF96 DAF96 DL94 DL94 DL94 DF64
Main principle Audio-Amplification
Details Tape Recorder
Power type and voltage Dry Batteries / 2 × 1,5 & 2 × 67,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Nagra II-c - Kudelski SA; Cheseaux-sur-
Material Metal case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 330 x 175 x 125 mm / 13 x 6.9 x 4.9 inch
Notes

Thorens spring motor #144 with crank for wind-up. External microphone and earphones.

Meccanismo a molla thorens con manovella. Cuffia microfono esterni

Model page created by Federico Valdameri † 7.2015. See "Data change" for further contributors.
