126V

126V; Kungs Brand; (ID = 201824) Radio
Use red slider bar for more.
126V; Kungs Brand; (ID = 201824) Radio

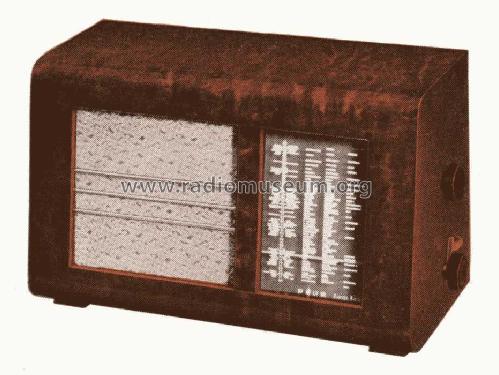

Kungs Brand;: 126V [Radio] ID = 201824 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 126V, Kungs (Brand); Göteborg:
This picture is from an information leaflet.

Country:  Sweden
Manufacturer / Brand:  Kungs (Brand); Göteborg
alternative name

Kungsradio
Year: 1950 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH21 ECH21 EBL21 AZ21
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Wave Bands given in the notes.
Details
Loudspeaker Ø 16 cm = 6.3 inch
Power out
from Radiomuseum.org Model: 126V - Kungs Brand; Göteborg
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 445 x 266 x 222 mm / 17.5 x 10.5 x 8.7 inch
Notes 16 to 2000 meters.
Price in first year of sale 295.00 SEK
Mentioned in Original Sales Leaflet

Model page created by Jörgen Svensson. See "Data change" for further contributors.



All listed radios etc. from Kungs (Brand); Göteborg
Here you find 166 models, 71 with images and 54 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
