310B

310B; Kungs Brand; (ID = 657830) Radio

310B; Kungs Brand; (ID = 657831) Radio
Use red slider bar for more.
310B; Kungs Brand; (ID = 657830) Radio

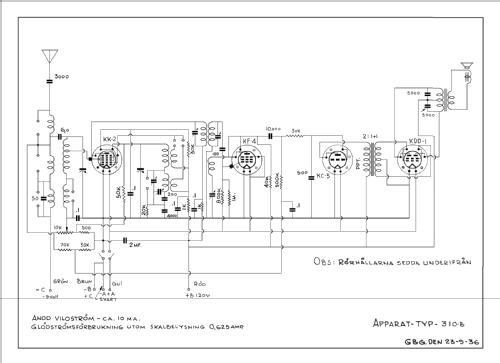

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Sweden
Manufacturer / Brand:  Kungs (Brand); Göteborg
alternative name

Kungsradio
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: KK2 KF4 KC3 KDD1
Main principle Superheterodyne (common); ZF/IF 430 kHz; Reaction
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Storage and/or dry batteries / 2 & 9 & 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 310B - Kungs Brand; Göteborg
Material Wooden case
Shape Tablemodel, with any shape - general.
Price in first year of sale 195.00 SEK
Source of data - - Manufacturers Literature

Model page created by John Koster. See "Data change" for further contributors.



All listed radios etc. from Kungs (Brand); Göteborg
Here you find 166 models, 71 with images and 54 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
