320V Spec.

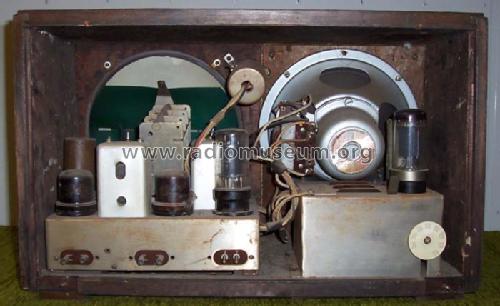

320V; Kungs Brand; (ID = 406231) Radio 320V; Kungs Brand; (ID = 406233) Radio
320V; Kungs Brand; (ID = 406232) Radio
Use red slider bar for more.
320V; Kungs Brand; (ID = 406231) Radio
Kungs Brand;: 320V [Radio] ID = 406231 874x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 320V Spec., Kungs (Brand); Göteborg

Country:  Sweden
Manufacturer / Brand:  Kungs (Brand); Göteborg
alternative name

Kungsradio
Year: 1939 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH11 EBF11 EBC11 EL11 EM1 AZ11
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-260 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: 320V [Spec.] - Kungs Brand; Göteborg
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 470 x 300 x 240 mm / 18.5 x 11.8 x 9.4 inch
Notes Chassie identical or at least very close to 321 V. Dimensions of cabinet same as 320 V. Propably test series, prototype or custom made.
Source of data - - Data from my own collection

Model page created by Anders Söderström. See "Data change" for further contributors.
