321V

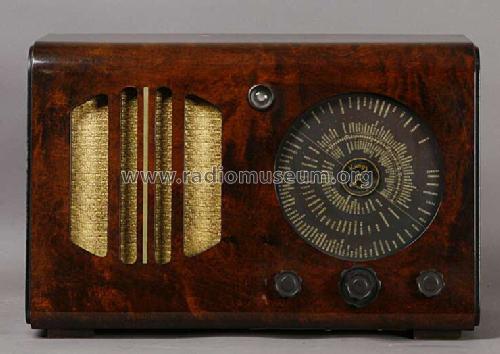

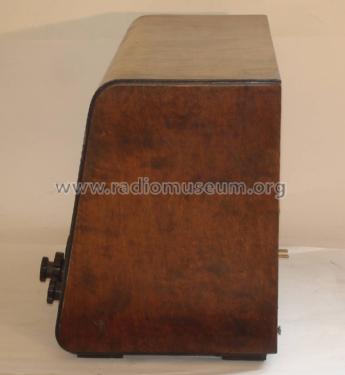

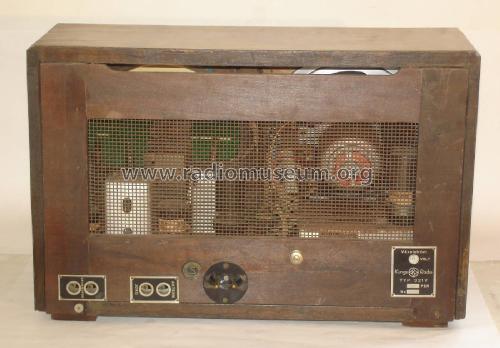

321V; Kungs Brand; (ID = 601032) Radio

321V; Kungs Brand; (ID = 601322) Radio
321V; Kungs Brand; (ID = 402671) Radio 321V; Kungs Brand; (ID = 402673) Radio
321V; Kungs Brand; (ID = 402674) Radio 321V; Kungs Brand; (ID = 596369) Radio
Use red slider bar for more.
321V; Kungs Brand; (ID = 402671) Radio
Kungs Brand;: 321V [Radio] ID = 402671 700x532
Select picture or schematic to display from thumbnails on the right and click for download.
For model 321V, Kungs (Brand); Göteborg

Country:  Sweden
Manufacturer / Brand:  Kungs (Brand); Göteborg
alternative name

Kungsradio
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH11 EBF11 EBC11 EL11 EM1 AZ11
Main principle Superheterodyne (common)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details

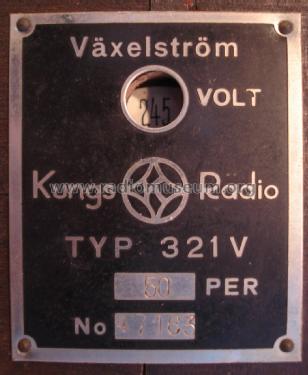

Power type and voltage Alternating Current supply (AC) / 110-260 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: 321V - Kungs Brand; Göteborg
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 480 x 320 x 240 mm / 18.9 x 12.6 x 9.4 inch
Net weight (2.2 lb = 1 kg) 14.8 kg / 32 lb 9.6 oz (32.599 lb)
Price in first year of sale 295.00 SEK
Source of data - - Data from my own collection

Model page created by Anders Söderström. See "Data change" for further contributors.



All listed radios etc. from Kungs (Brand); Göteborg
Here you find 166 models, 71 with images and 54 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
