324VG

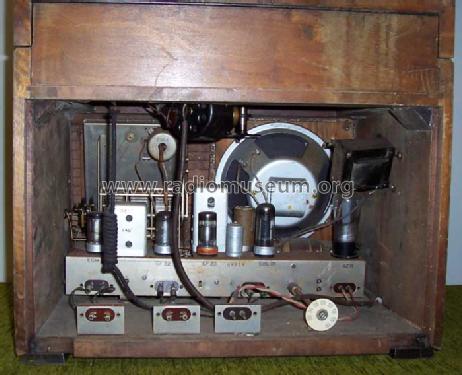

324VG; Kungs Brand; (ID = 405684) Radio 324VG; Kungs Brand; (ID = 405689) Radio
324VG; Kungs Brand; (ID = 405687) Radio
Use red slider bar for more.

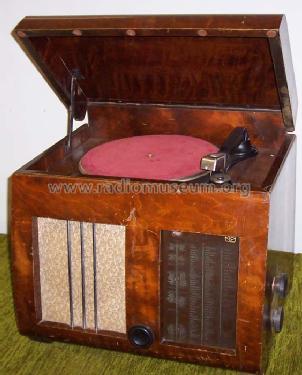

324VG; Kungs Brand; (ID = 405684) Radio
Kungs Brand;: 324VG [Radio] ID = 405684 565x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 324VG, Kungs (Brand); Göteborg

Country:  Sweden
Manufacturer / Brand:  Kungs (Brand); Göteborg
alternative name

Kungsradio
Year: 1942 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH21 EF22 EF22 EBL21 EM4 AZ11
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110-260 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: 324VG - Kungs Brand; Göteborg
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 510 x 450 x 410 mm / 20.1 x 17.7 x 16.1 inch
Notes Model not present in sales brochure. Probably small series or custom made.
Source of data - - Data from my own collection

Model page created by Anders Söderström. See "Data change" for further contributors.
