324VMG

324VMG; Kungs Brand; (ID = 406382) Radio
Use red slider bar for more.
324VMG; Kungs Brand; (ID = 406382) Radio
Kungs Brand;: 324VMG [Radio] ID = 406382 498x700

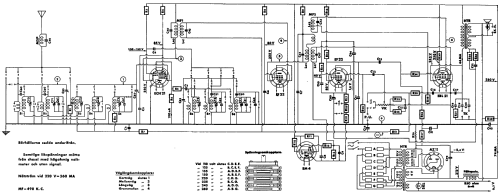

Select picture or schematic to display from thumbnails on the right and click for download.
For model 324VMG, Kungs (Brand); Göteborg

Country:  Sweden
Manufacturer / Brand:  Kungs (Brand); Göteborg
alternative name

Kungsradio
Year: 1942 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH21 EF22 EF22 EBL21 EM4 AZ11
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-260 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: 324VMG - Kungs Brand; Göteborg
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 600 x 840 x 410 mm / 23.6 x 33.1 x 16.1 inch
Notes Not in salesbrochure. Small series or custom made.
Source of data - - Data from my own collection

Model page created by Anders Söderström. See "Data change" for further contributors.
