L100

L100; Kungs Brand; (ID = 664805) Radio
L100; Kungs Brand; (ID = 403047) Radio L100; Kungs Brand; (ID = 403049) Radio

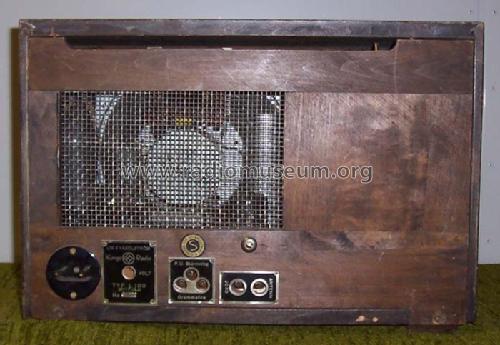

L100; Kungs Brand; (ID = 403048) Radio
Use red slider bar for more.
L100; Kungs Brand; (ID = 403047) Radio
Kungs Brand;: L100 [Radio] ID = 403047 700x511
Select picture or schematic to display from thumbnails on the right and click for download.
For model L100, Kungs (Brand); Göteborg

Country:  Sweden
Manufacturer / Brand:  Kungs (Brand); Göteborg
alternative name

Kungsradio
Year: 1941 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: UBF11 UL12 UY11
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage AC/DC-set / 127/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: L100 - Kungs Brand; Göteborg
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 415 x 290 x 190 mm / 16.3 x 11.4 x 7.5 inch
Notes Fixed tuning to one specific station at factory.
Source of data - - Data from my own collection

Model page created by Anders Söderström. See "Data change" for further contributors.
