Trotter 491ABC

Trotter 491ABC; Kungs Brand; (ID = 406220) Radio Trotter 491ABC; Kungs Brand; (ID = 406222) Radio

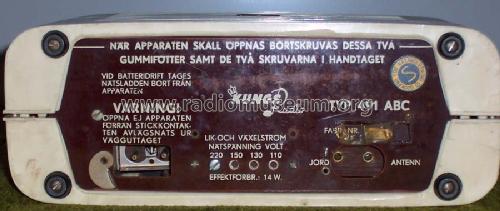

Trotter 491ABC; Kungs Brand; (ID = 406221) Radio
Use red slider bar for more.
Trotter 491ABC; Kungs Brand; (ID = 406220) Radio
Kungs Brand;: Trotter 491ABC [Radio] ID = 406220 712x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Trotter 491ABC, Kungs (Brand); Göteborg

Country:  Sweden
Manufacturer / Brand:  Kungs (Brand); Göteborg
alternative name

Kungsradio
Year: 1953 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK92 DF91 DAF91 DL94
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Line / Batteries (any type) / 110; 130; 150; 220 / 90 & 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
Power out
from Radiomuseum.org Model: Trotter 491ABC - Kungs Brand; Göteborg
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 310 x 250 x 110 mm / 12.2 x 9.8 x 4.3 inch
Notes Silicon rectifier. Sold for at least two seasons.
Price in first year of sale 237.00 SEK
Source of data - - Data from my own collection

Model page created by Anders Söderström. See "Data change" for further contributors.
