- Country
- Argentina
- Manufacturer / Brand
- Laboratorios Douglas S.A.C.I.; Buenos Aires
- Year
- 1935 ??
- Category
- Kit (Parts plus instruction) or building instructions only
- Radiomuseum.org ID
- 190567
-
- alternative name: Douglas Argentina
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 175 kHz; 2 AF stage(s)
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 4.1 W (unknown quality)
- from Radiomuseum.org

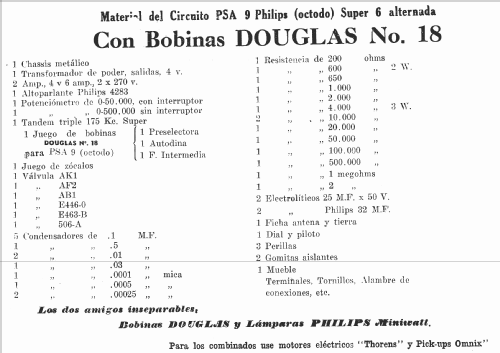

- Model: PSA 9 18 - Laboratorios Douglas S.A.C.I.;
- Notes
- Usa altoparlante Philips Nº4283.
- Source of data
- - - Manufacturers Literature
- Author
- Model page created by Cristian Wolkenstein. See "Data change" for further contributors.
