• Country
• Belgium

• Manufacturer / Brand
• Laboratoria Vandamme; Antwerpen - Anvers

• Year
• 1950–1955 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 305670

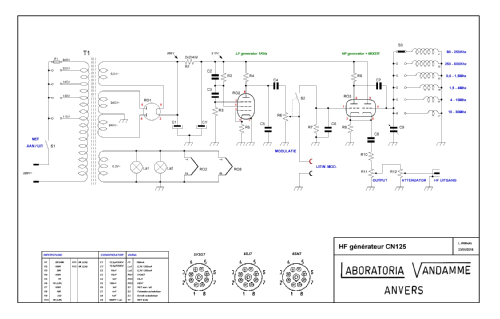

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 5Y3GT 6SJ7 6SN7

• Main principle
• Radio Frequency Amplification only

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 145; 220; 240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: H.F. Generator C.N. 125 - Laboratoria Vandamme;

• Shape
• Rack

• Dimensions (WHD)
• 485 x 270 x 260 mm / 19.1 x 10.6 x 10.2 inch

• Notes

• This RF generator was conceived to align MF circuits and other tuned circuits with a minimum of effort and a maximum of accuracy.

  The calibration is directly applied to the scale. The measurement accuracy is ± 0.5%.

  The RF circuit consists of a coupled cathode "Franklin oscillator", it is a very stable oscillator. The LF oscillator for internal modulation consists of a "Transitron circuit".

  Wave bands 90 kHz - 30 MHz in 6 ranges:

  • 90 - 250 kHz
  • 250 - 600 kHz
  • 0.6 - 1.5 MHz
  • 1.5 - 4.0 MHz
  • 4.0 - 10 MHz
  • 10 - 30 MHz

• Net weight (2.2 lb = 1 kg)
• 9.4 kg / 20 lb 11.3 oz (20.705 lb)

• Author
• Model page created by Ludo Withofs. See "Data change" for further contributors.

• Other Models

• Here you find 4 models, 4 with images and 4 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Laboratoria Vandamme; Antwerpen - Anvers
