Pont de Mesure C.N.8023

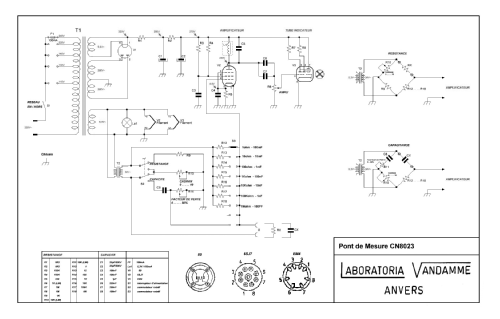

Pont de Mesure C.N.8023; Laboratoria Vandamme (ID = 2043073) Equipment
Pont de Mesure C.N.8023; Laboratoria Vandamme (ID = 2043071) Equipment Pont de Mesure C.N.8023; Laboratoria Vandamme (ID = 2043072) Equipment
Use red slider bar for more.
Pont de Mesure C.N.8023; Laboratoria Vandamme (ID = 2043071) Equipment
Laboratoria Vandamme: Pont de Mesure C.N.8023 [Equipment] ID = 2043071 1400x914
Select picture or schematic to display from thumbnails on the right and click for download.
For model Pont de Mesure C.N.8023, Laboratoria Vandamme; Antwerpen - Anvers

Country:  Belgium
Manufacturer / Brand:  Laboratoria Vandamme; Antwerpen - Anvers
Year: 1948 ?? Category: Service- or Lab Equipment
Valves / Tubes 3: 80 6SJ7 EM4
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 145; 220; 240 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Pont de Mesure C.N.8023 - Laboratoria Vandamme;
Material Leather / canvas / plastic - over other material
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 375 x 270 x 205 mm / 14.8 x 10.6 x 8.1 inch
Notes

The Wheatstone bridge is intended for measurement of capacitors and resistors, the measuring circuit is powered by an a.c. source of +/- 30V.

In the switch position "capacity" the bridge circuit utilizes a standard capacitor in series with a variabie resistance to obtain the dissipation factor.


Measuring ranges:

Resistance:     1 ohm  to 10M ohm     in 7 ranges
Capacitance:   100pF  to 1000µF        in 7 ranges

Just like all other units of Laboratoria Vandamme The front panel is covered in a thick coating in which the text is engraved.





Net weight (2.2 lb = 1 kg) 7.6 kg / 16 lb 11.8 oz (16.74 lb)
