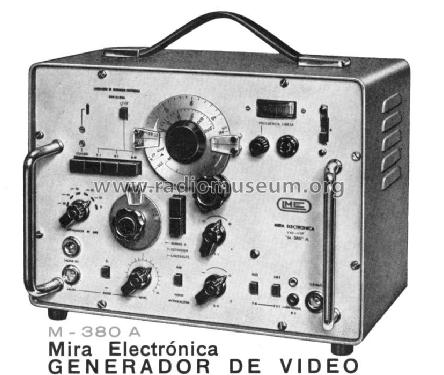

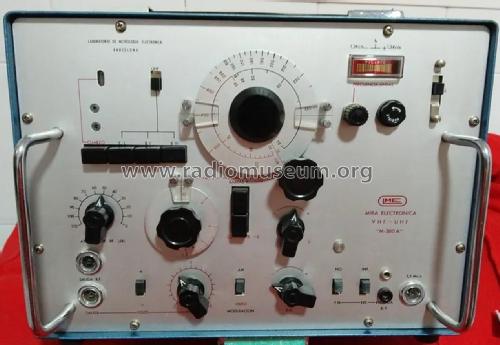

Mira Electrónica M-380-A (TV Signal Generator)

• Country
• Spain

• Manufacturer / Brand
• LME Laboratorio de Metrologia Electrónica; Barcelona

• Year
• 1965

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 171484

• Picture

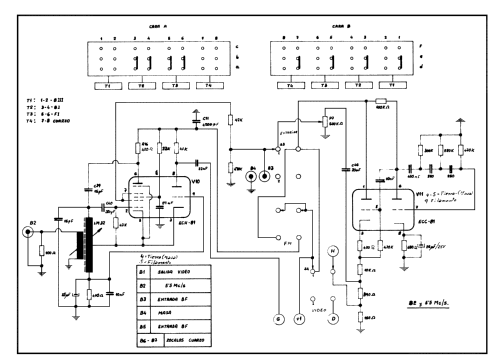

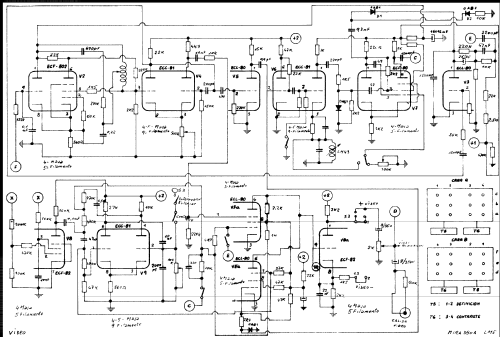

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• ECF802 ECL80 ECC81 ECL80 ECC81 ECF80 ECF82 ECC81 ECH81 ECC81 ECF80 EZ81 or

• Number of Transistors
• 1

• Semiconductors
• Tr.Gl.=Metal-rectif. OA81 OAZ213 SFD117 AF139

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 125; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Mira Electrónica M-380-A - LME Laboratorio de Metrologia

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 310 x 220 x 170 mm / 12.2 x 8.7 x 6.7 inch

• Notes
• TV UHF/VHF Signal Generator. 30 - 860 MHz.
  Canales TV a cristal de cuarzo o OFV.
  TV channels piloted by cuarz or VFO.
  Precio catálogo 1967: 15.850 Pts (ESP).

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

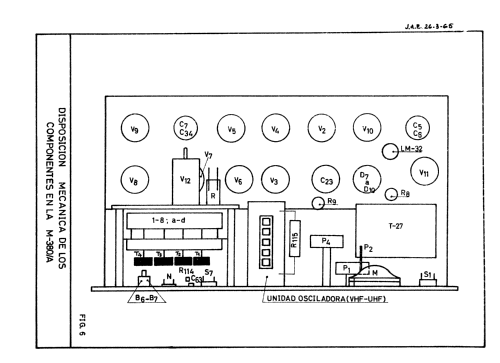

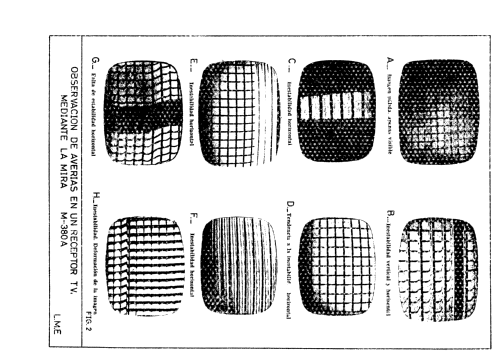

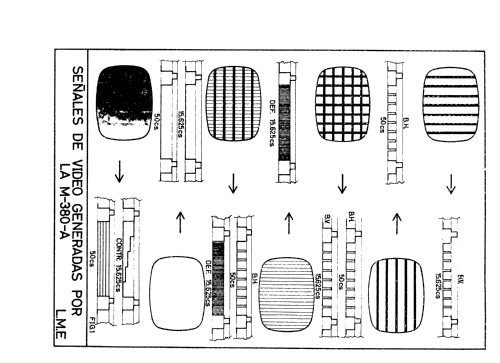

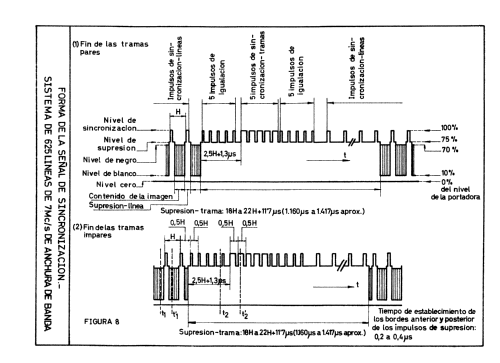

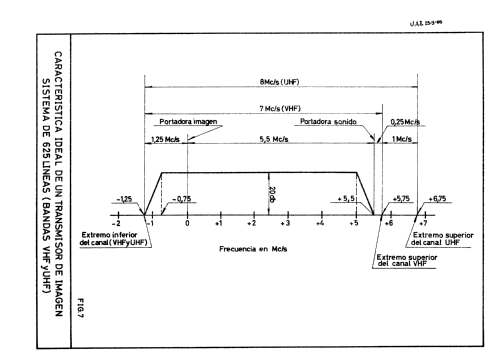

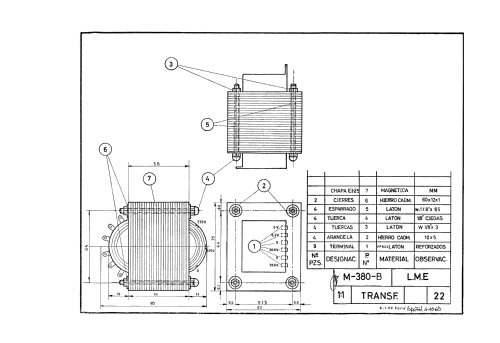

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
