Oscillatore (Signal Generator AF and RF) 1146

Oscillatore 1146; Lael, Laboratori (ID = 1787028) Equipment Oscillatore 1146; Lael, Laboratori (ID = 1787029) Equipment

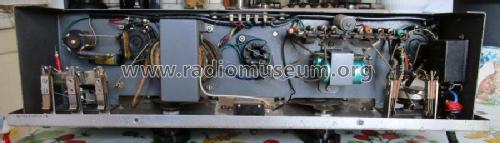

Oscillatore 1146; Lael, Laboratori (ID = 1787030) Equipment Oscillatore 1146; Lael, Laboratori (ID = 1787031) Equipment
Oscillatore 1146; Lael, Laboratori (ID = 1787032) Equipment
Use red slider bar for more.
Oscillatore 1146; Lael, Laboratori (ID = 1787028) Equipment
Lael, Laboratori: Oscillatore 1146 [Equipment] ID = 1787028 900x521
Select picture or schematic to display from thumbnails on the right and click for download.
For model Oscillatore (Signal Generator AF and RF) 1146, Lael, Laboratori Elettronici; Milano

Country:  Italy
Manufacturer / Brand:  Lael, Laboratori Elettronici; Milano
Year: 1940 ?? Category: Service- or Lab Equipment
Valves / Tubes 3: EF9 EF6 10E/11400
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 160; 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Oscillatore 1146 - Lael, Laboratori Elettronici;
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 400 x 210 x 100 mm / 15.7 x 8.3 x 3.9 inch
Notes

Alta frequenza

banda
A   165-410 kHz
B    430-490 kHz
C    490-1310 kHz
D    1.250-3.5 MHz
E    3.5-9 MHz
F    10-28 MHz

Bassa frequenza

banda
A   50-600 Hz
B   600-6000 Hz

Model page created by Vittorio Scandagliato. See "Data change" for further contributors.
