• Country
• United States of America (USA)

• Manufacturer / Brand
• Lafayette Radio & TV Corp; New York (NY)

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 165204

• • alternative name: Wholesale Radio

• Number of Tubes
• 7

• Valves / Tubes
• 6D6 6K8 6D6 6Q7G 6U6 25L6G 25Z5

• Main principle
• Superhet with RF-stage; 2 AF stage(s)

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Details
• Changer (Record changer)

• Power type and voltage
• AC/DC-set / 110-120 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet. / Ø 12 inch = 30.5 cm

• Material
• Wooden case

• from Radiomuseum.org

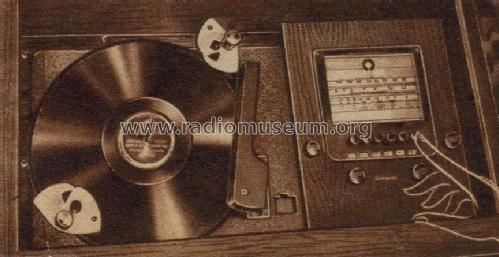

• Model: C-99 - Lafayette Radio & TV Corp; New

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 30.12 x 32.25 x 15.75 inch / 765 x 819 x 400 mm

• Notes
• Same chassis like the Model C-17. Features Garrard automatic record changer. Was available in a 220V AC/DC version for additional 5 USD.

  See details and summaries for the models of this Lafayette catalog no. 73, 1939 for radio season 1938/39.

• Price in first year of sale
• 100.00 $

• Mentioned in
• Lafayette Radio Catalog (catalog 1939, page 19)

• Author
• Model page created by Felix Schaffhauser. See "Data change" for further contributors.

• Other Models

• Here you find 1369 models, 1187 with images and 421 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Lafayette Radio & TV Corp; New York (NY)
