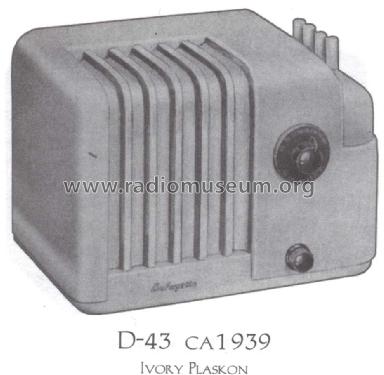

D-43, 5 Tube AC-DC
Lafayette Radio & TV Corp; New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Lafayette Radio & TV Corp; New York (NY)
- Year
- 1938/1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 45945
-
- alternative name: Wholesale Radio
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Number of Transistors
- Semiconductors
- 55A
- Main principle
- TRF without regeneration
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: D-43, 5 Tube AC-DC - Lafayette Radio & TV Corp; New
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 9.125 x 6.375 x 6 inch / 232 x 162 x 152 mm
- Notes
- color walnut brown. Also in ivory color as D-44. . The catalog says 5 tubes. but RM does not count Ballast tubes, hence only 4 tubes here.
See details and summaries for the models of this Lafayette catalog no. 73, 1939 for radio season 1938/39.
- Price in first year of sale
- 9.00 $
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 14 = 1944 = before 1943
- Literature/Schematics (1)
- Lafayette Radio Catalog (Lafayette catalog no. 73 from 1939 for saison 1938/39, page ..)
- Literature/Schematics (2)
- Machine Age to Jet Age II (page 180.)
