HE-30

• Country
• United States of America (USA)

• Manufacturer / Brand
• Lafayette Radio & TV Corp; New York (NY)

• Year
• 1961

• Category
• Amateur-Receiver (amateur bands, may include broadcast bands)

• Radiomuseum.org ID
• 116322

• • alternative name: Wholesale Radio

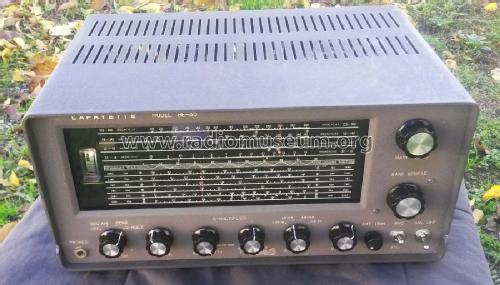

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

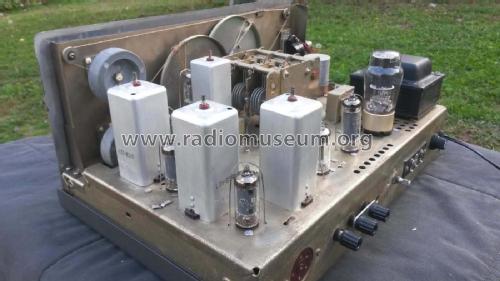

• Number of Tubes
• 9

• Valves / Tubes
• 6BA6 6BE6 6BE6 6BA6 6BA6 6AV6 6AV6 6AQ5 5Y3

• Main principle

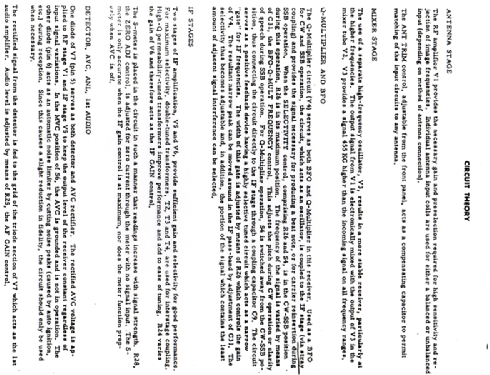

• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 9 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 100; 117 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 1.5 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: HE-30 - Lafayette Radio & TV Corp; New

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 15 x 7 x 10 inch / 381 x 178 x 254 mm

• Notes

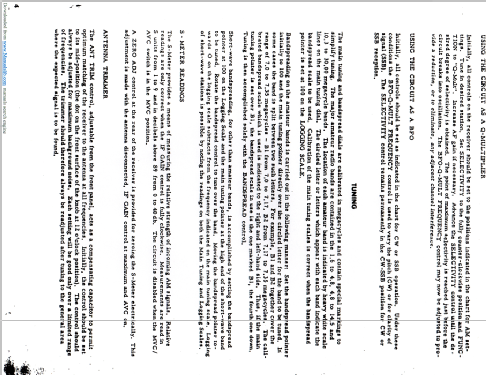

• General purpose and amateur receiver. BC (550 - 1600 kHz), SW1 (1.6 - 4.8 MHz), SW2 (4.8 - 14.5 MHz) and SW3 (10.3 - 30.0 MHz) bands. Electrical bandspread on amateur bands 80, 40, 20, 15, 10 m. Q-multiplier; S-meter.

  Original price information from QST 12/1962

  Custom made in Japan by Trio for Lafayette. See Kenwood model 9R-59 for other similar models.

  Made in Japan

• Net weight (2.2 lb = 1 kg)
• 9.5 kg / 20 lb 14.8 oz (20.925 lb)

• Price in first year of sale
• 100.00 $

• Source of data
• - - Manufacturers Literature

• Mentioned in
• Shortwave Receivers - Past & Present (3rd ed.)

• Documents regarding this model

• Author
• Model page created by Götz Linss † 27.06.21. See "Data change" for further contributors.
