- Country
- United States of America (USA)
- Manufacturer / Brand
- Lafayette Radio & TV Corp; New York (NY)
- Year
- 1937 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 242278
-
- alternative name: Wholesale Radio
- Number of Tubes
- 4
- Number of Transistors
- Semiconductors
- K55BX
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: J-35 - Lafayette Radio & TV Corp; New
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 11.5 x 7.75 x 6 inch / 292 x 197 x 152 mm
- Price in first year of sale
- 9.45 USD
- Mentioned in
- Machine Age to Jet Age II (page 182.)
- Literature/Schematics (1)
- Collector's Guide to Antique Radios (7th Edition)
- Literature/Schematics (2)

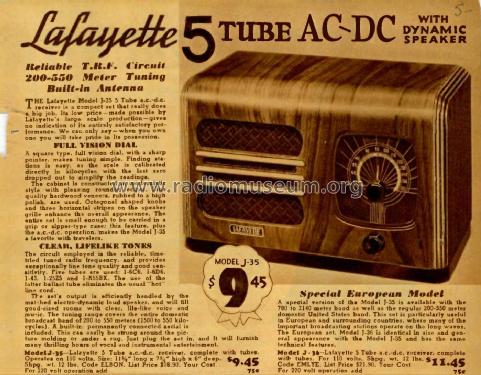

- Lafayette Radio Catalog (1937 No. 65, page 1.)
- Author
- Model page created by Noemi Erb. See "Data change" for further contributors.
