- Country
- United States of America (USA)
- Manufacturer / Brand
- Lafayette Radio & TV Corp; New York (NY)
- Year
- 1938/1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 164340
-
- alternative name: Wholesale Radio
From Catalog Lafayette 1939, No.73

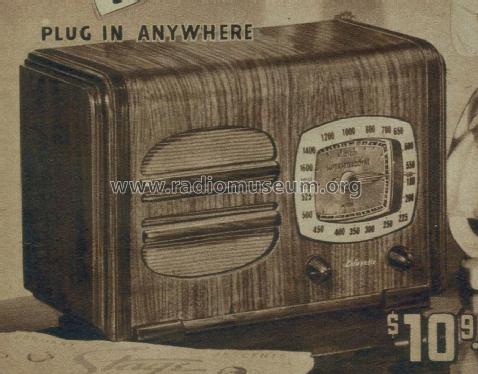

From Catalog Lafayette 1939, No. 73
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 110 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Wooden case
- from Radiomuseum.org
- Model: JA-7 - Lafayette Radio & TV Corp; New
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 12.75 x 8.625 x 6.75 inch / 324 x 219 x 171 mm
- Notes
- Lafayette model JA-7 has a factory attached Antenna built-in. Tuning range is slightly extended below the Broadcast band in order to include Police calls and the experimental Hi-Fi stations below 200m.
See details and summaries for the models of this Lafayette catalog no. 73, 1939 for radio season 1938/39.
- Price in first year of sale
- 11.00 $
- Literature/Schematics (1)
- Lafayette Radio Catalog (Catalog 1939, No.73, page 4)
- Literature/Schematics (2)
- Machine Age to Jet Age II (page 183.)
- Author
- Model page created by Felix Schaffhauser. See "Data change" for further contributors.
