• Country
• United States of America (USA)

• Manufacturer / Brand
• Lafayette Radio & TV Corp; New York (NY)

• Year
• 1933/1934

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 160534

• • alternative name: Wholesale Radio

• Number of Tubes
• 4

• Valves / Tubes
• 57 2A3 2A3 5Z3

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 3.5 W (unknown quality)

• Material
• Metal case, TUBES VISIBLE

• from Radiomuseum.org
• Model: P15714 10 Watt Amp. - Lafayette Radio & TV Corp; New

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 12 x 7.5 x 7 inch / 305 x 191 x 178 mm

• Notes

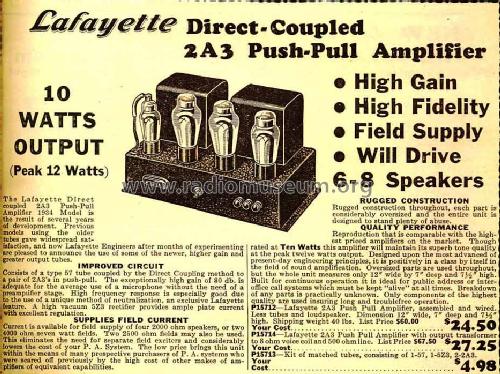

• The Lafayette 10 Watt Direct-Coupled 2A3 Push-Pull Amplifier P15712 (without tubes and speaker - not mentioning about output transformer) and P15714 (without tubes but with output transformer) are described by Lafayette - see picture. P15713 is only the matched tubes for one of them - for $ 4.98.

  For the model P15712 the Lafayette price is $ 24.50 (list price = $ 50.00) without tubes and loudspeaker - as P15714 without tubes but with output transformer to 8 ohm coice coil and 500 ohm line is $ 27.25 ($ 67.50). See details for the models of this catalog.

• Price in first year of sale
• 27.00 $ +

• Literature/Schematics (1)
• Lafayette Radio Catalog (Lafayette catalog no. 55 for 1934, page 52.)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
