• Year
  • 1936 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 46018
    • alternative name: Wholesale Radio

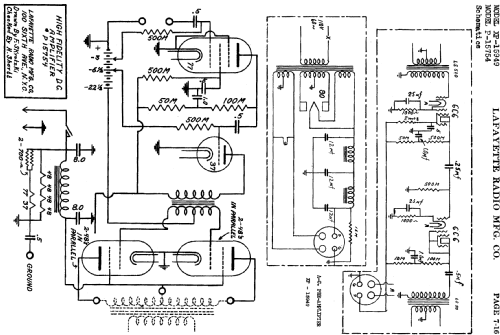

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Direct Current supply (DC) / DC= 120 & Bat. = 3 & 6.5 & 22.5 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • from Radiomuseum.org
  • Model: P-15754 - Lafayette Radio & TV Corp; New
  • Notes
  • Push-pull af output.

  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 7 = 1936 and before
