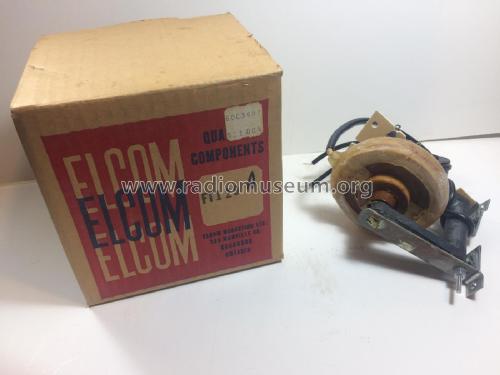

TV Flyback Transformer FT129A

TV Flyback Transformer FT129A; Lake/Elcom; (ID = 2498033) Radio part
TV Flyback Transformer FT129A; Lake/Elcom; (ID = 2498029) Radio part
Use red slider bar for more.
TV Flyback Transformer FT129A; Lake/Elcom; (ID = 2498029) Radio part
Lake/Elcom;: TV Flyback Transformer FT129A [Radio part] ID = 2498029 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model TV Flyback Transformer FT129A, Lake/Elcom; Scarborough, ON

Country:  Canada
Manufacturer / Brand:  Lake/Elcom; Scarborough, ON
Year: 1962 ?? Category: Radio part (not a module)
Details
Loudspeaker
Power out
from Radiomuseum.org Model: TV Flyback Transformer FT129A - Lake/Elcom; Scarborough, ON
Material Various materials
Dimensions (WHD) 2.75 x 4 x 2.5 inch / 70 x 102 x 64 mm
Notes

The Elcom FT129A high-voltage flyback transformer was specifically designed to replace the following Canadian General Electric parts: R2217, R2581, R2623, R2639, R2921, and R3099.

Net weight (2.2 lb = 1 kg) 0 lb 12 oz (0.75 lb) / 0.341 kg
Mentioned in - - Manufacturers Literature (ELCOM Replacement Manual, EL-101-D (1962))
Literature/Schematics (1) -- Schematic

Model page created by Jack Sorensen. See "Data change" for further contributors.
