• Country
• United States of America (USA)

• Manufacturer / Brand
• Lawrence Co. Ltd.; Cincinnati

• Year
• 1956 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 202009

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1R5 1U4 1U5 3V4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1,5 & 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

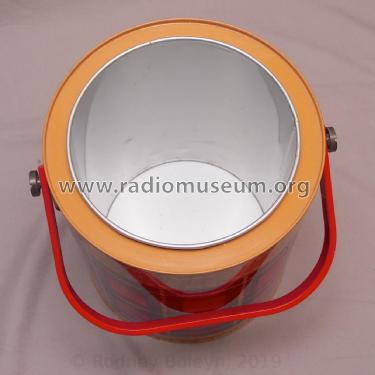

• Model: Bagpiper SKR-101 [Lunch box - lunch pail - thermos] - Lawrence Co. Ltd.; Cincinnati

• Shape
• Design Radio or Novelty / Gadget - fancy or unusual shape.

• Notes

• At least colored with red squares and black, with cream thin lines and cream body.

  See also the curious UK Jewel Radio with 3 battery tubes but mains (line) only of similar appearance.

• Source of data
• Photofact Folder, Howard W. SAMS

• Circuit diagram reference
• Photofact Folder, Howard W. SAMS

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 335 Folder 2 dated 10-56)

• Author
• Model page created by Geri Meier. See "Data change" for further contributors.
