Unknown 6 Tube 270

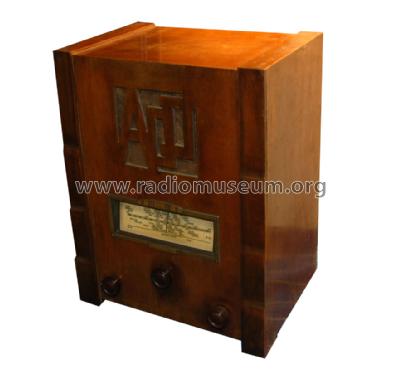

Unknown 6 Tube 270; Laÿta, Lafont et (ID = 1197525) Radio Unknown 6 Tube 270; Laÿta, Lafont et (ID = 1197526) Radio

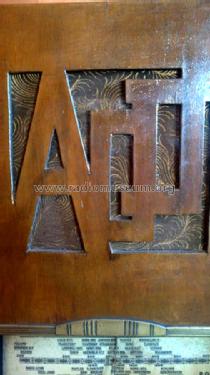

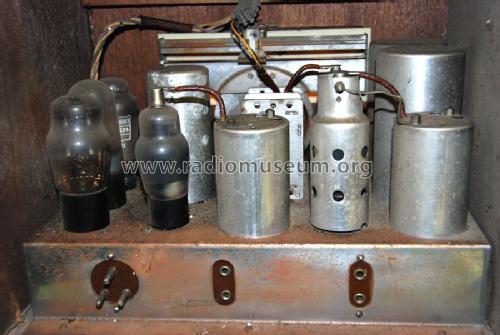

Unknown 6 Tube 270; Laÿta, Lafont et (ID = 1197527) Radio Unknown 6 Tube 270; Laÿta, Lafont et (ID = 1197528) Radio

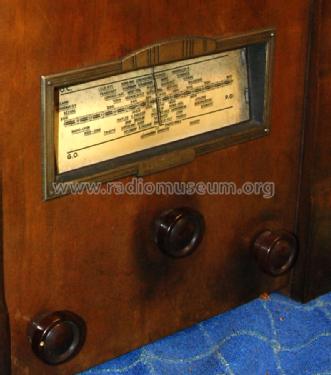

Unknown 6 Tube 270; Laÿta, Lafont et (ID = 1197529) Radio
Use red slider bar for more.

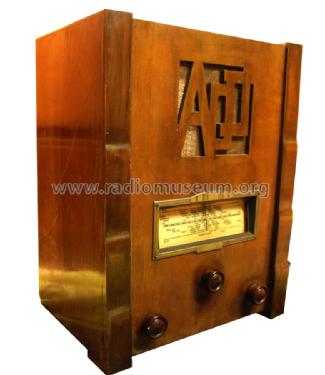

Unknown 6 Tube 270; Laÿta, Lafont et (ID = 1197525) Radio
Laÿta, Lafont et: Unknown 6 Tube 270 [Radio] ID = 1197525 780x900
Select picture or schematic to display from thumbnails on the right and click for download.
For model Unknown 6 Tube 270, Laÿta, Lafont et Tardy, Billancourt

Country:  France
Manufacturer / Brand:  Laÿta, Lafont et Tardy, Billancourt
Year: 1937 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6D6 6A7 6D6 75 42 80S
Main principle Superheterodyne (common)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Unknown 6 Tube 270 - Laÿta, Lafont et Tardy,
Material Wooden case
Shape Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
Dimensions (WHD) 360 x 260 x 460 mm / 14.2 x 10.2 x 18.1 inch
Notes 270 is most probably just the serial number.
Net weight (2.2 lb = 1 kg) 11 kg / 24 lb 3.7 oz (24.229 lb)

Model page created by Spartaco Gori. See "Data change" for further contributors.



All listed radios etc. from Laÿta, Lafont et Tardy, Billancourt
Here you find 4 models, 4 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
