PAL Pattern Generator LCG-399A

PAL Pattern Generator LCG-399A; Leader Electronics (ID = 2022442) Equipment PAL Pattern Generator LCG-399A; Leader Electronics (ID = 390945) Equipment
PAL Pattern Generator LCG-399A; Leader Electronics (ID = 505195) Equipment
Use red slider bar for more.
PAL Pattern Generator LCG-399A; Leader Electronics (ID = 2022442) Equipment

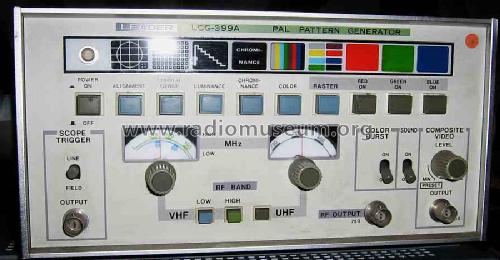

Leader Electronics: PAL Pattern Generator LCG-399A [Equipment] ID = 2022442 1400x874
Select picture or schematic to display from thumbnails on the right and click for download.
For model PAL Pattern Generator LCG-399A, Leader Electronics Corp.; Yokohama:
Gerät steht im 'Das Radiomuseum', Cham.

Country:  Japan
Manufacturer / Brand:  Leader Electronics Corp.; Yokohama
Year: 1988 ?? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: PAL Pattern Generator LCG-399A - Leader Electronics Corp.;
Material Metal case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 250 x 125 x 325 mm / 9.8 x 4.9 x 12.8 inch
Notes Pattern generator for PAL B, C, D, G, H, I and K. 13 patterns, modified color bars. BAS output 0-1 Vss, HF output VHF I, III, UHF. Intercarrier frequencies 5,5, 6,0, 6,5 MHz with internal AM- or FM-modulation (1 kHz). Trigger output for oscilloscope.
Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Price in first year of sale 2'729.00 DM
Mentioned in RIM electronic 88
