Trough-Line II (2)

Leak, H.J.; London

Data

Forum

Pictures

Collections

Country
Great Britain (UK)

Manufacturer / Brand
Leak, H.J.; London

Year
1962 ?

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
101596

Schematics

Trough-Line II ; Leak, H.J.; London (ID = 325349) Radio — Leak, H.J.; London Trough-Line II (3)

Trough-Line II ; Leak, H.J.; London (ID = 2003053) Radio — Leak, H.J.; London Trough-Line II (3)

Trough-Line II ; Leak, H.J.; London (ID = 2003054) Radio — Leak, H.J.; London Trough-Line II (3)

Trough-Line II ; Leak, H.J.; London (ID = 2003058) Radio — Leak, H.J.; London Trough-Line II (3)

Trough-Line II ; Leak, H.J.; London (ID = 2003061) Radio — Leak, H.J.; London Trough-Line II (3)

Trough-Line II ; Leak, H.J.; London (ID = 2003062) Radio — Leak, H.J.; London Trough-Line II (3)

Trough-Line II ; Leak, H.J.; London (ID = 2003063) Radio — Leak, H.J.; London Trough-Line II (3)

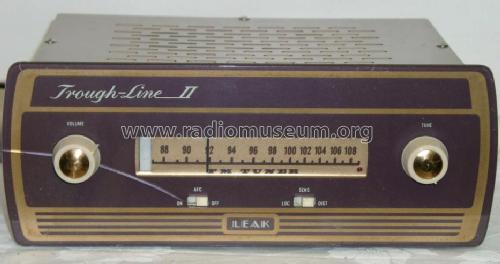

Trough-Line II ; Leak, H.J.; London (ID = 1013831) Radio — Leak, H.J.; London Trough-Line II (1)

Trough-Line II ; Leak, H.J.; London (ID = 1013834) Radio — Leak, H.J.; London Trough-Line II (1)

Trough-Line II ; Leak, H.J.; London (ID = 1013833) Radio — Leak, H.J.; London Trough-Line II (1)

Trough-Line II ; Leak, H.J.; London (ID = 238112) Radio — Leak, H.J.; London Trough-Line II (2)
EbayGB Item: 160010191302

Trough-Line II ; Leak, H.J.; London (ID = 238111) Radio — Leak, H.J.; London Trough-Line II (2)
EbayGB Item: 160010191302

Trough-Line II ; Leak, H.J.; London (ID = 238113) Radio — Leak, H.J.; London Trough-Line II (2)
EbayGB Item: 160010191302

Trough-Line II ; Leak, H.J.; London (ID = 473383) Radio — Leak, H.J.; London Trough-Line II (2)
aus ebay, Verkäufer jam-music

Trough-Line II ; Leak, H.J.; London (ID = 473384) Radio — Leak, H.J.; London Trough-Line II (2)
aus ebay, Verkäufer jam-music

Trough-Line II ; Leak, H.J.; London (ID = 473385) Radio — Leak, H.J.; London Trough-Line II (2)
aus ebay, Verkäufer jam-music

Trough-Line II ; Leak, H.J.; London (ID = 1013832) Radio — Leak, H.J.; London Trough-Line II (1)

Trough-Line II ; Leak, H.J.; London (ID = 1112547) Radio — Leak, H.J.; London Trough-Line II (1)

Trough-Line II ; Leak, H.J.; London (ID = 1145903) Radio — Leak, H.J.; London Trough-Line II (1)

Trough-Line II ; Leak, H.J.; London (ID = 2054133) Radio — Leak, H.J.; London Trough-Line II (1)
Vollmetallausführung, Front

Trough-Line II ; Leak, H.J.; London (ID = 2054134) Radio — Leak, H.J.; London Trough-Line II (1)
Vollmetallausführung, Rückseite

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
7

Valves / Tubes
ECF80 ECF80 ECC84 ECC85 EM84 EF80 EZ80

Main principle
Superheterodyne (common)

Tuned circuits
10 FM circuit(s)

Wave bands
FM Broadcast Band Only

Power type and voltage
Alternating Current supply (AC) / 210; 230; 250 Volt

Loudspeaker
- For headphones or amp.

Material
Metal case

from Radiomuseum.org
Model: Trough-Line II - Leak, H.J.; London

Shape
Tablemodel, low profile (big size).

Dimensions (WHD)
292 x 113 x 235 mm / 11.5 x 4.4 x 9.3 inch

Notes
FM Tuner, mono, with Multiplex output.

Net weight (2.2 lb = 1 kg)
5.3 kg / 11 lb 10.8 oz (11.674 lb)

Price in first year of sale
498.00 DM

Source of data
-- Collector info (Sammler)

Mentioned in
HiFi Jahrbuch 1963/64 Seite 94

Author
Model page created by a member from A. See "Data change" for further contributors.

Other Models
Here you find 43 models, 43 with images and 21 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
