Sygna S1

Sygna S1; Lee, Toralf, (ID = 402217) Radio
Sygna S1; Lee, Toralf, (ID = 402219) Radio
Use red slider bar for more.
Sygna S1; Lee, Toralf, (ID = 402219) Radio

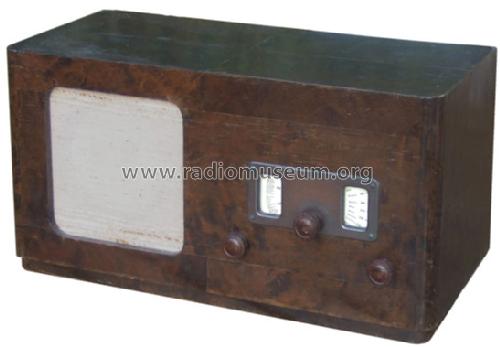

Lee, Toralf,: Sygna S1 [Radio] ID = 402219 547x380
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sygna S1, Lee, Toralf, Radiofabrikk; Balestrand

Country:  Norway
Manufacturer / Brand:  Lee, Toralf, Radiofabrikk; Balestrand
Year: 1937 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: KK2 KF3 KC1_4pin KL2
Main principle Superheterodyne (common)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries / 120, 12, 10 and 2 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 19 cm = 7.5 inch
Power out
from Radiomuseum.org Model: Sygna S1 - Lee, Toralf, Radiofabrikk;
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 595 x 310 x 255 mm / 23.4 x 12.2 x 10 inch
Source of data -- Collector info (Sammler)

Model page created by Ernst Rykkje. See "Data change" for further contributors.
