• Country
• Australia

• Manufacturer / Brand
• Lekmek Radio Laboratories; Sydney

• Year
• 1934

• Category
• Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter

• Radiomuseum.org ID
• 162506

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 1C6

• Main principle
• Superheterodyne (common); ZF/IF 585 kHz

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Storage and/or dry batteries / 135 & 67.5 & 2 & -3 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: 102 - Lekmek Radio Laboratories;

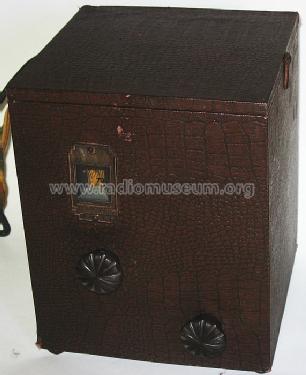

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 168 x 210 x 187 mm / 6.6 x 8.3 x 7.4 inch

• Notes
• Shortwave converter, tunes from 19 to 50 metres. This item was available as a kit or fully assembled.

• Price in first year of sale
• 5.75 Aus£

• Mentioned in

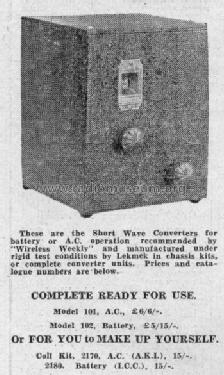

• Wireless Weekly (Australia) (24-5-1935 P92.)

• Literature/Schematics (1)
• - - Manufacturers Literature

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
